NOTE: the mbmongraph Addon is frozen and will see no further development.

What is mbmongraph

mbmongraph is a small AddOn for IPCop that creates graphs from mbmon readings. mbmon can report temperatures, voltages and rpm of cooling fans.
You will need to install the mbmon binary addon first, as mbmongraph uses mbmon to get the sensor readings.


Installation

  • download mbmongraph-ipcop-<version>.tar.gz from this webpage
  • copy 'mbmongraph-ipcop-<version>.tar.gz' to any directory of your choice ( e.g. to '/root' using WinSCP or SCP [ port 222! ] )
  • go straight to the console or open a console connection ( e.g. via Putty or SSH [ port 222! ] )
  • login as user 'root'
  • change to the directory you have copied the file to ( e.g. type 'cd /root' )
  • extract the archive ( type 'tar xvfz mbmongraph-ipcop-<version>.tar.gz' )
  • change to installation directory ( type 'cd mbmongraph-ipcop-<version>' )
  • to install the addon type './install -i' ( to uninstall type './install -u' )

Upgrading

Just follow the steps under Installation, no need to uninstall first.


Usage

After installation you should have an extra menu-item for mbmongraph:

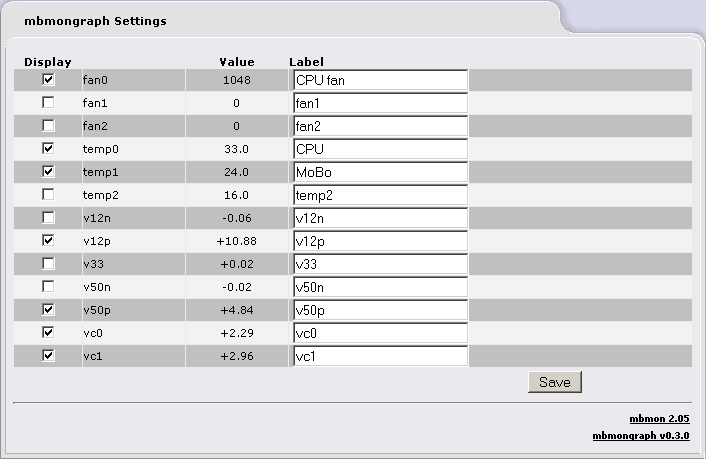

First configure the graphs you want to see:

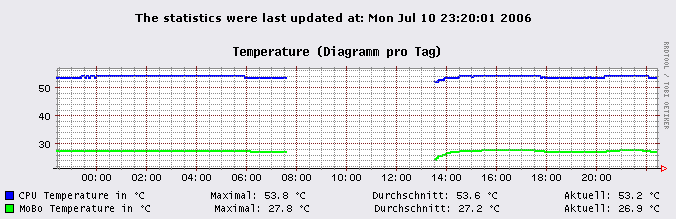

And then (after a few minutes of waiting) some nice graphics:


Was ist mbmongraph

siehe oben


Download


 mbmongraph-ipcop-0.4.2.tar.gz

MD5 chksum: 90cf4093de6f6a22a3bc5904421a33f2


Credits

This addon relies heavily on the mbmon utility. Simple and effective
Simply amazing RRDtool logging & graphing.
Very useful: the routines from the Addons-Server project
Special thanks to Tom 'wintermute' for the mbmongraph logo
Thanks to Zdeněk Věchet for czech and Paolo Asperti for italian translation.


History

2007-08-22 0.4.2 Some minor corrections to keep /var/log/httpd/error_log empty
2007-06-23 0.4.0 Display minimal values in graphs
2007-05-19 0.3.0 Czech and Italian translations
2006-09-17 0.2.0 Removed graph selection, done automatically now
2006-08-08 0.1.3 Fixed another type, this time in fan graph title
2006-08-05 0.1.2 Bugfix in voltage graph title and updated German translation
2006-07-14 0.1.0 First online version
